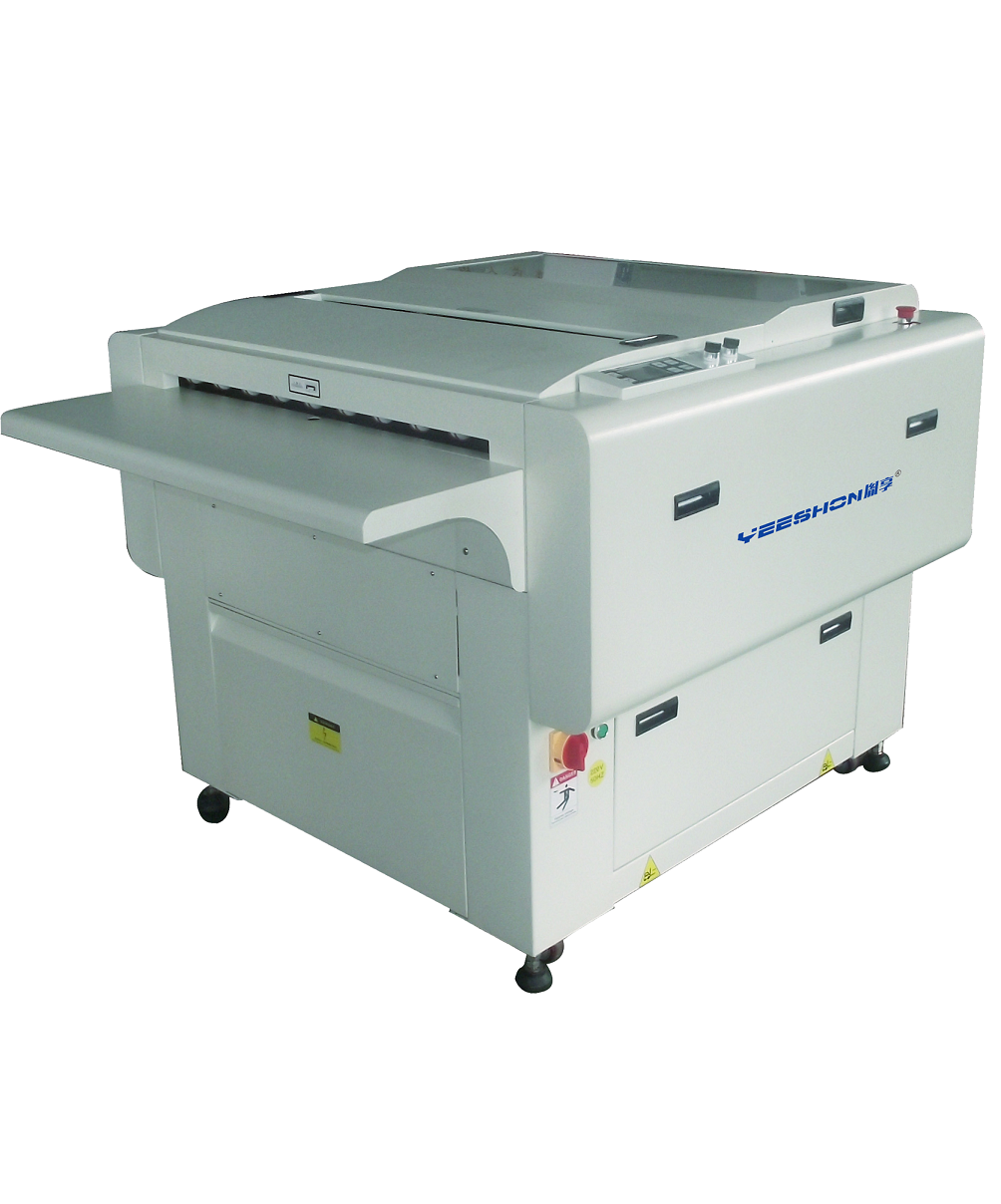

YEESHON CTP PROCESSOR MACHINE
Features of Yeeshon CTP Processor:
1.PVC tank and duralumin body of Yeeshon ctp processor resistant to corrosion.
2. Extra-long developing with stable uniformity, especially adaptive to high-speed photosensitization thermal/UV CTP plates.
3. Overdeveloping gum roller assures no damage to the surface and two sets of wash brushes assures sufficient development.
4. Independent develop cooling system keeps the develop temperature fluctuation within 0.5 dgree Celcius.
5. Accurate automatic anti-oxidation detecting and replenishing system of Yeeshon CTP plate processor controls developing concentration.
6. Automatic cleaning and recycling.
7. Precise PLC control, processing without any letup.
8. Energy saving and environment friendly.
| Model | SLU—88TH | SLU—120TH | SLU—140TH | ||
| Material | Thermal/UV CTP plate, CTcP plate | ||||
| Capacity(cm/min) | 20—150 | ||||
| Plate width (mm) | 880mm | 1200mm | 1400mm | ||
| Min. Plate length(mm) | 300 | ||||
| Plate thickness(mm) | 0.15—0.4 | ||||
| Tank content, developer(L) | 38 | 56 | 68 | ||
| Tank content, wash(L) | 13.5 | 18 | 20 | ||
| Adjustable temperature, dev(°C) | 0 ~ 40°C adjustable ( 32—104°F) | ||||
| Adjustable temperature, dry(°C) | 0~70°C adjustable ( 0~158°F ) | ||||
| Water consumption, max(L/min) | 8 | 10.5 | 12 | ||
| Diameter of wash brush (mm) | 50 | ||||
| Rotary speed of wash brush | 80 | ||||
| Filter(um) | 75 | ||||
| Water supply | Tap water (min. pressure 1 bar) | ||||
| Gumming | Roller pressing gumming | ||||
| Diameter of roller | 60mm | ||||
| Dev. replenishment | 0—1 | ||||
| Dev. heating-up rate | 0.5 | ||||
| Horizontal adjustment | Adjustable | ||||
| Power supply | 220V 1φ 50—60Hz 30A | ||||
| Power consumption (kw/h) | 3.5 | 4 | 4.5 | ||
| Voltage fluctuation | ±10% | ||||
| Gross weight(kg) | 500 | 650 | 780 | ||
| Net weight(kg) | 420 | 580 | 650 | ||
|
Mechanic size(mm) |
1260*1520*1040 |
1525*1520*1040 |
1850*1555*1040 |
||
| Packing size(mm) | 1360*1620*1250 | 1625*1620*1250 | 1950*1655*1250 | ||
| Optional configuration :plate stack .water filtration system | |||||
